O.T TABLES
O.T TABLES
STANDARD ACCESSORIES:- 1) SECTION MATTRESSES 2) PADDED LITHOTOMY CLUTCHES, SHOULDER SUPPORT, LATERAL SUPPORT, ARM REST 3) DRIVE HANDLE OPTIONAL :- 1) Orthopedic attachments (floor or hanging) 2) Neuro attachments (3 pin or horse shoe) 3) Top sliding
C-ARM TABLE (3in1)
ELECTRIC, MANUAL & BATTERY Backup
8 position :- Tabletop elevation up/down, Trendelenburg/ reverse-Trendelenburg, Flex/ re-Flex, Lateral tilt left/right and chair positions.
- 6 section table top
- Min Ht.26" and Max Ht.46"
- Fiber Base with Imported wheels
- Additional Control Panel
- Zero Position ( Doctor Preference )
All other features of C-ARM Table S.S....
C-ARM TABLE S.S
- Radio translucent top
- Interchangeable head and leg section
- Eccentric pillar for maximum CARM coverage
All features of O.T Table S.S.....
A. ELECTRIC - 8 Position
B. SEMI - ELECTRIC - 4 Position
(Tabletop elevation up/down, Trendelenburg/ reverse-Trendelenburg)
C. MANUAL / HYDRAULIC
0.T TABLE S.S
- 5 section table top
- Kidney Bridge Up/Down
- Head & Leg sections adjustable
A. ELECTRIC - 8 Position
B. SEMI - ELECTRIC - 4 Position
C. MANUAL / HYDRAULIC
O.T LIGHTS
SHADOWLESS O.T LIGHTS
AVAILABLE IN MOBILE AND CEILING INSTALLATIONS
OMEGA
TECHNICAL DATA OF EACH DOME
- Super Deluxe quality structure
- 360 Degree rotation
- INTENSITY : 1,60,000 Lux
- Size of light field : 12-30 cm
- Colour temperature : 4000-5000 K
- Colour reduction index : 93 RA
- LED LIfe : >50000 Hrs
- Number of LED : 126
- Diameter of light : 500mm
- Brightness control : Capacitive touch panel
- Colour of LED : Customizable
- Power supply : 220V / 50Hz ACC
- Focusing : Adjustable
LED-6 Hexagonal
TECHNICAL DATA OF EACH DOME
- Super Deluxe quality structure
- 360 Degree rotation
- INTENSITY : 1,60,000 Lux
- Size of light field : 12-30 cm
- Colour temperature : 4000-5000 K
- Colour reduction index : 93 RA
- LED LIfe : >50000 Hrs
- Number of LED : 126
- Diameter of light : 500mm
- Brightness control : Capacitive touch panel
- Colour of LED : Customizable
- Power supply : 220V / 50Hz ACC
- Focusing : Adjustable

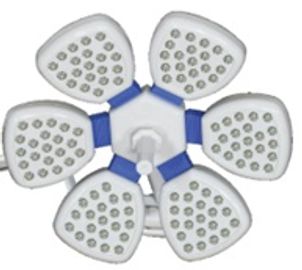

LEd-6 Petal
TECHNICAL DATA OF EACH DOME
- Super Deluxe quality structure
- 360 Degree rotation
- INTENSITY : 1,60,000 Lux
- Size of light field : 12-30 cm
- Colour temperature : 4000-5000 K
- Colour reduction index : 93 RA
- LED LIfe : >50000 Hrs
- Number of LED : 126
- Diameter of light : 500mm
- Brightness control : Capacitive touch panel
- Colour of LED : Customizable
- Power supply : 220V / 50Hz ACC
- Focusing : Adjustable
LED-4 Hexagonal
TECHNICAL DATA OF EACH DOME
- INTENSITY : 1,20,000 Lux
- Size of light field : 12-30 cm
- Colour temperature : 4000-5000 K
- Colour reduction index : 93 RA
- LED LIfe : >50000 Hrs
- Number of LED : 76
- Diameter of light : 500mm
- Brightness control : Capacitive touch panel
- Power supply : 220V / 50Hz ACC
- Focusing : Adjustable
LED-4 Petal
TECHNICAL DATA OF EACH DOME
- INTENSITY : 1,20,000 Lux
- Size of light field : 12-30 cm
- Colour temperature : 4000-5000 K
- Colour reduction index : 93 RA
- LED LIfe : >50000 Hrs
- Number of LED : 84
- Diameter of light : 500mm
- Brightness control : Capacitive touch panel
- Power supply : 220V / 50Hz ACC
- Focusing : Adjustable
LED-4 Economical
TECHNICAL DATA OF EACH DOME
- INTENSITY : 1,00,000 Lux
- Size of light field : 12-30 cm
- Colour temperature : 4000-5000 K
- Colour reduction index : 93 RA
- LED LIfe : >50000 Hrs
- Number of LED : 56
- Diameter of light : 500mm
- Power supply : 220V / 50Hz ACC
- Focusing : Adjustable
ANESTHESIA MACHINE
ANESTHESIA MACHINE
NRUPUR ELEGANT
FEATURES :
- Hypoxia guard with S-ORC system to ensure minimum of 25% of O2.
- Nitro lock - basic safety with N2O cut off system.
- Pressure relief valve with audible O2 failure warning device.
- O2 MOX regulator with conversion kit & combination spanner.
- Open block facility ( for any breathing circuit ) with emergency O2 flush at table level.
- 1 no. Inlet & 1 no. Outlet with connection for BPC flowmeter.
- Glass Bottle Halothene vapourizer (Isoflurane / Sevoflurane - Optional)
- Power outlets at rear side
NRUPUR - CLASSIC
FEATURES :
- M.S - P.C Structure, S.S top
- 02/N20 standard two tube flowmeter
- Glass Bottle Halothene vapourizer (Isoflurane / Sevoflurane - Optional)
- Basic Nitrous cut-off system with audible O failure warning device
- Non-return valve fitted at back bar to protect the vaporiser from back pressure.
- Change over mechanism ( Open / Close circuit & vice versa ) with System emergency O2 flush at table level
- Single Drawer
HYPOXIC GAURD optional
MARK-4 WITH HYPOXIC GAURD
FEATURES :
- Oxygen driven N2O supply
- Oxy Failure Warning Device ( OFWD )
- Higher precision pressure relief cum Non return valve (Popup Valve)
- Change over mechanism with oxygen flush ( Open & Close Circuit)
- Higher visibility & clarity Large diameter ( 63mm) O2 & N2O gauge each two nos. Oxygen & nitrous oxide gas inlet port each 2 nos.
- Higher efficiency forged regulators & yokes with SS fittings. 10 liter W/C cylinder carrier facility
- Standard Adult Bain Circuit
- 5" dia antistatic wheel
etc......
WORKSTATIONS
WORKSTATIONS
NRUPUR ECO
NRUPUR ECO PLUS
HCP INTEGRATED
STERILIZER EQUIPMENT
STERILIZER EQUIPMENT

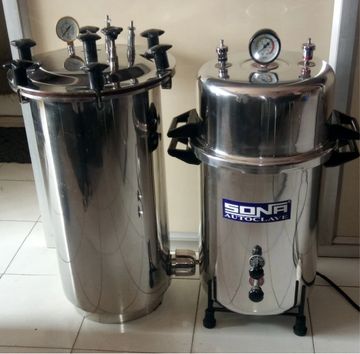

VERTICAL HIGH PRESSURE STERILIZER
Double chamber and all working parts made of stainless steel, the lid is made of heavy stainless steel plate fitted with a pressure gauge, a steam release and 2 safety valves, electrically operated.
AVAILABLE IN :
- 16" x 24"
- 12" x 20"
Models available with 'Automatic electricity cut off ' option.

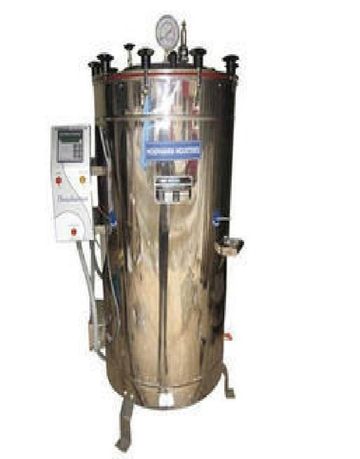

VERTICAL STERILIZER
Single chamber and all working parts made of stainless steel, electrically operated.
AVAILABLE IN :
STAINLESS STEEL MODEL
- 12" x 24"
- 12" x 12"
ALUMINIUM COOKER MODEL
- 12" x 22"
- 12" x 16"
- 12" x 12"
FUMIGATOR AND FOGGER
- FOGGER WITH TIMER
- AUTOMIST S.S BODY 5 ltrs CAPACITY (available with 'Automatic electricity cut off' option)
SUCTION APPARATUS
SUCTION APPARATUS
'SUPREME'

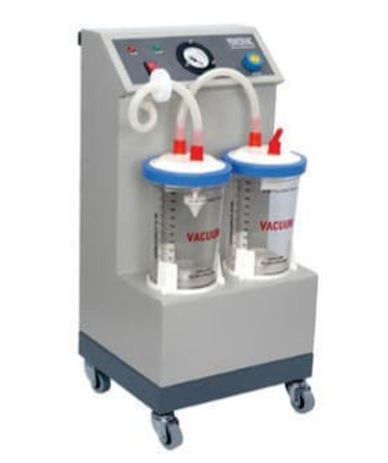

POWER VAC
TECHNICAL SPECIFICATIONS :
HOUSING : Powder coated heavy MS cabinet
CAPACITY : -730mmHg at 60 LPM
NOISE LEVEL : <50dB
JARS : Polycarbonate 2 x 2.5 ltrs capacity with mechanical over flow system and ABS lid
FILTER : Reusable bacterial filter
TUBING : Non-Collapsible suction tubing
VACUUM GAUGE : 2.0 Inch, 0-760 mmHg
POWER : 220/230V AC, 50Hz, 1Ph
OIL FREE DOUBLE PISTON PUMP (1 HP)

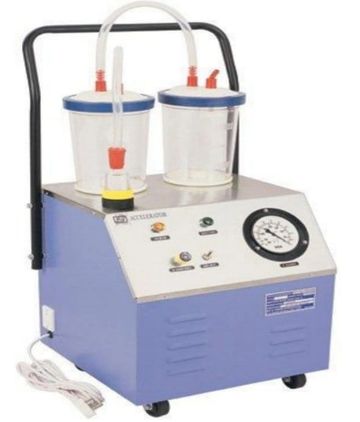

ACCELERATOR
TECHNICAL SPECIFICATIONS :
HOUSING : Powder coated MS cabinet with S.S top
CAPACITY : -730mmHg at 40-45 LPM
NOISE LEVEL : <50dB
JARS : Polycarbonate 2 x 2.5 ltrs capacity with mechanical over flow system and ABS lid
FILTER : Reusable bacterial filter
TUBING : Non-Collapsible suction tubing
VACUUM GAUGE : 4.0 Inch, 0-760 mmHg
POWER : 220/230V AC, 50Hz, 1Ph
OIL IMMERSED PUMP (1/2 HP)
INSTA VAC
TECHNICAL SPECIFICATION :
HOUSING : Powder coated MS cabinet
CAPACITY : -710mmHg at 30-35 LPM
NOISE LEVEL : <50dB
JARS : Polycarbonate 2 x 2.5 ltrs capacity with mechanical over flow system and ABS lid
FILTER : Reusable bacterial filter
TUBING : Non-Collapsible suction tubing
VACUUM GAUGE : 3.0 Inch, 0-760 mmHg
POWER : 220/230V AC, 50Hz, 1Ph
OIL IMMERSED PUMP (1/4 HP)
